Deep Space Atomic Clock Prepares For Spaceflight

By  //  February 28, 2013

Share on Facebook Share on Twitter Share on LinkedIn Share on Delicious Digg This Stumble This

Essential For Extended Missions

BREVARD COUNTY • KENNEDY SPACE CENTER, FLORIDA – When people think of space technologies, many think of high-tech solar panels, complex and powerful propulsion systems or sophisticated, electronic guidance systems.

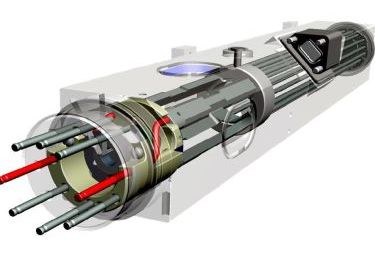

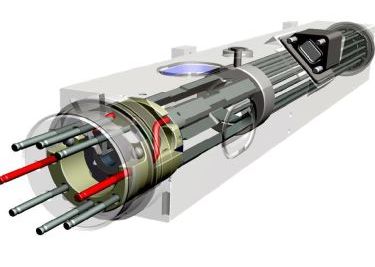

A computer-aided design shows the linear ion trap at the “heart” of the Deep Space Atomic Clock’s physics package, slightly smaller than two rolls of quarters laid side by side. It’s a small, low-mass atomic clock based on mercury-ion trap technology that will be demonstrated in space providing unprecedented stability needed for next-generation deep space navigation. (Image courtesy NASA/JPL

Another critical piece of spaceflight technology, however, is an ultra-stable, highly accurate device for timing which will be highly essential to NASA’s success on deep-space exploration missions.

NASA is preparing to fly a Deep Space Atomic Clock, or DSAC, in a demonstration that will revolutionize the way we conduct deep-space navigation.

The technology will provide assistance to enable a spacecraft of any given size and design a method to calculate its own timing and navigation data in real time.

This one-way navigation technology would improve upon the current two-way system in which information is sent to Earth, requiring a ground team to calculate timing and navigation and then transmitting it back to the spacecraft. A real-time, on-board navigation capability is key to improving NASA’s capabilities for executing time critical events, such as a planetary landing or planetary “fly-by,” when signal delays are too great for the ground to interact with the spacecraft during the event.

The planned Deep Space Atomic Clock mission will demonstrate the clock’s operability and performance while flown in Earth orbit as a hosted payload. A Global Positioning System receiver and antenna will be connected with the clock in an integrated payload. The clock will have, on average, a view of four satellites and will measure signals transmitted by each. Together, with data from a global network of dozens of ground GPS receivers, signals can simultaneously estimate the accuracy of the Deep Space Atomic Clock. (Image courtesy NASA/JPL)


“Adopting DSAC on future NASA missions will increase navigation and radio science data quantity by two to three times, improve data quality by up to 10 times and reduce mission costs by shifting toward a more flexible and extensible one-way radio navigation architecture,” said Todd Ely, principal investigator of the Deep Space Atomic Clock Technology Demonstration at NASA’s Jet Propulsion laboratory in California.

The project is part of NASA’s Technology Demonstration Missions program, managed by the Marshall Space Flight Center in Huntsville, Ala., for NASA’s Office of the Chief Technologist in Washington.

The one-way deep space navigation enabled by DSAC uses the existing deep space network more efficiently than the current two-way system, thus expanding the network’s capacity without adding any new antennas or their associated costs. This is important, since future human exploration of deep space will demand more tracking from the deep space network than can currently be delivered with the existing system.

“The Deep Space Atomic Clock flight demonstration mission will advance laboratory-qualified technology to flight readiness and will make a practical atomic clock available to a variety of space missions.” Todd Ely, NASA’s principal investigator of the Deep Space Atomic Clock Technology Demonstration

“The Deep Space Atomic Clock flight demonstration mission will advance this laboratory-qualified technology to flight readiness and will make a practical atomic clock available to a variety of space missions,” Ely said.

The clock is a miniature mercury-ion atomic device the DSAC team will fly as a payload on an Earth orbiter in a one-year experiment to validate its operability in space and its usefulness for one-way navigation.

“A potential use for DSAC on a future mission would be in a follow-up to the Mars Reconnaissance Orbiter,” Ely said. NASA’s Mars Reconnaissance Orbiter launched to Mars in 2005 on a search for evidence that water existed on the planet’s surface for enough time to provide a habitat for life.

The orbiter completed its primary science phase in 2008 and continues to work in an extended mission.

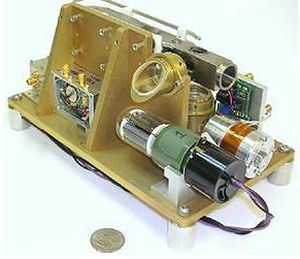

A laboratory representation of the Deep Space Atomic Clock, with a quarter alongside the unit for size comparison, and without the electronics required for operation. It also contains laboratory components, including a metal frame, instead of flight hardware. (Image courtesy NASA/JPL)


Atomic clocks are the most accurate timekeeping method known and are used as the primary standard for international time distribution services — to control the frequency of television broadcasts, and in global navigation satellite systems such as the Global Positioning System.

Ground-based atomic clocks have long been the cornerstone of most space vehicle navigation because they provide root data necessary for precise positioning. DSAC will deliver the same stability and accuracy for spacecraft exploring the solar system.

In much the same way that modern Global Positioning Systems, or GPS, use one-way signals to enable terrestrial navigation services, the Deep Space Atomic Clock will provide a similar capability in deep-space navigation — with such extreme accuracy that researchers will be required to carefully account for the effects of relativity, or the relative motion of an observer and an observed object, as impacted by gravity, space and time. Clocks in GPS-based satellite, for example, must be corrected to account for this effect, or their navigational fixes begin to drift

While cesium and rubidium atomic clocks are in use on satellites in Earth orbit–specifically in the Global Positioning System (GPS) satellite constellation–there are no atomic clocks onboard interplanetary spacecraft.

“What this project is really about is changing the way we do our navigation,” Ely said.”

The DSAC is being readied for launch into Earth’s orbit in 2015. This demonstration mission would validate the very heart of the hardware: a miniaturized mercury-ion atomic clock.

Enhanced navigation

Ely said that by flying DSAC on future NASA missions, the device can increase navigation and radio science data quantity by two to three times, as well as improve data quality by up to 10 times.

In addition, the DSAC can provide a cost-savings down here on Earth.

The one-way downlink communications enabled by the onboard atomic clock uses the existing Deep Space Network more efficiently than the current two-way system. Therefore, it expands the network’s capacity without adding any new antennas and their associated costs.

Possible DSAC-assigned duties in the future include enabling pinpoint landings on planets, such as Mars; executing gravity mapping of planetary bodies; and providing an onboard frequency reference for both occultation measurements and solar system relativity tests.

“Many NASA missions takes years of planning and development to ensure their success, and every NASA mission has been made possible by pushing the technology envelope,” said Dr. Mason Peck, NASA’s Chief Technologist. “America expects boldness from NASA. We are now returning to our innovation roots, taking the long-term view of technological advancement that is essential for accomplishing our missions. America expects no less.”
