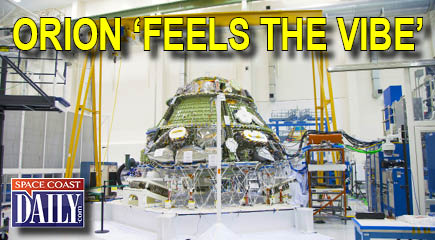

BREVARD COUNTY • KENNEDY SPACE CENTER, FLORIDA — Testing designed to simulate the vibrations NASA’s Orion will experience during its first trip to space successfully wrapped up inside the Operations and Checkout Building high bay at NASA’s Kennedy Space Center in Florida.
The completion of the testing marks another step forward toward Orion’s uncrewed December flight that will put to the test the spacecraft that will send astronauts to an asteroid and eventually Mars on future missions.
“It was a great accomplishment for the test team in preparation for the Exploration Flight Test-1 later this year,” said Rafael Garcia, the Orion Program Test and Verification lead at NASA’s Johnson Space Center in Houston.
“Following months of preparations and pretest analysis, the multi-point random vibration test was conducted without any major issues and was completed two days ahead of schedule.”
To prepare for the vibration tests, which were conducted April 17-24, a team of NASA and Lockheed Martin engineers and technicians transferred Orion from the crew module assembly station to a special vibration stand in a portable test chamber.
The spacecraft was isolated from the floor and stand on special footing. Orion’s thrusters were cantilevered out so they were isolated from the test, and its windows, parachutes and drogue chutes were covered for protection.
Accelerometers and strain gages were placed around the crew module in various locations. These were used to measure simulated acceleration and strain levels on Orion’s structure.
Two electromagnetic shakers, each capable of up to 4,000 pounds of force, were attached to Orion on opposite sides. Baseline vibration tests began at five megahertz and gradually were increased up to about 500 megahertz.
EXPLORATION FLIGHT TEST PLANNED FOR LATER THIS YEAR
After each test run, the shakers were relocated to different points on Orion and systems specialists checked for any changes or abnormalities in the spacecraft’s structure.
“The completion of the test is a great accomplishment for the test team and NASA’s Orion Program in preparation for EFT-1,” — Rafael Garcia
Before each thirty-second test run, Orion’s avionics, batteries and electrical systems were powered up and its ammonia and helium tanks were pressurized to 200 psi.
The tests were monitored in a separate control room near the high bay, and the data after each 30-second run was analyzed to check for imperfections or defects and how the crew module performed. A flight following team in Firing Room 1 in Kennedy’s Launch Control Center monitored Orion during periods of powered-up testing.
“Shut-down limits were established in case the vibrations began to exceed limits,” said Trevor Kott, the Orion Crew and Service Module ground test manager at Johnson.
“This kind of test can be very complicated. There’s a science to finding the right balance.”
During the vibration test, other instrumentation on Orion was monitored for its state of health.
COMPLETION ‘GREAT ACCOMPLISHMENT’
“The completion of the test is a great accomplishment for the test team and NASA’s Orion Program in preparation for EFT-1,” Garcia said.
Orion’s first flight will launch an uncrewed capsule 3,600 miles into space for a four-hour mission to test several of its most critical systems.
After making two orbits, Orion will return to Earth at almost 20,000 miles per hour and endure temperatures near 4,000 degrees Fahrenheit, before its parachutes slow it down for a landing in the Pacific Ocean.
